Aviation Parts IRFR9214PBF MOSFET P-Chan Drain-Source Breakdown Voltage 250 V

Model Number : IRFR9214PBF

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T

Packaging Details : boxes

Manufacturer : Vishay

Product Category : MOSFET

Technology : Si

Mounting Style : SMD/SMT

Package / Case : TO-252-3

Transistor Polarity : P-Channel

Id - Continuous Drain Current : 2.7 A

Rds On - Drain-Source Resistance : 3 Ohms

Contact Now

Aviation Parts IRFR9214PBF MOSFET P-Chan Drain-Source Breakdown Voltage 250 V

Descriptions of Aviation Parts:

Third generation power MOSFETs from Vishay utilize advanced processing techniques to achieve low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface-mount applications.

Features of Aviation Parts:

Advanced process technology
Fully avalanche rated
Surface-mount (IRFR9214, SiHFR9214)
Straight lead (IRFU9214, SiHFU9214)
P-channel
Fast switching

Specifications of Aviation Parts:

Product Attribute	Attribute Value
Manufacturer:	Vishay
Product Category:	MOSFET
RoHS:	Details
Technology:	Si
Mounting Style:	SMD/SMT
Package / Case:	TO-252-3
Transistor Polarity:	P-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	250 V
Id - Continuous Drain Current:	2.7 A
Rds On - Drain-Source Resistance:	3 Ohms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	4 V
Qg - Gate Charge:	14 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	50 W
Channel Mode:	Enhancement
Series:	IRFR/U
Packaging:	Tube
Brand:	Vishay Semiconductors
Configuration:	Single
Height:	2.38 mm
Length:	6.73 mm
Product Type:	MOSFET
Factory Pack Quantity:	3000
Subcategory:	MOSFETs
Width:	6.22 mm
Unit Weight:	0.011640 oz

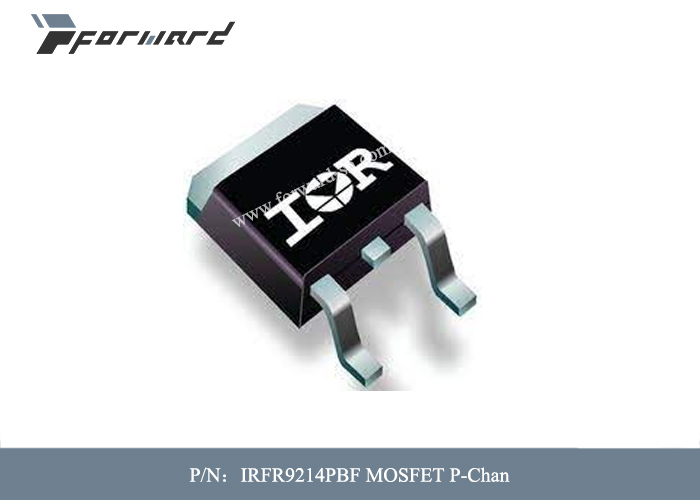

Aviation Parts IRFR9214PBF MOSFET P-Chan Drain-Source Breakdown Voltage 250 V Images
