Aviation Parts 302204S Multiple Conductor Cables Wire Gauge 22 AWG

Model Number : 302204S

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T

Packaging Details : boxes

Mfr : Belden Inc.

Cable Type : Multi-Conductor

Wire Gauge : 22 AWG

Conductor Material : Copper, Bare

acket (Insulation) Material : Poly-Vinyl Chloride (PVC)

Jacket (Insulation) Diameter : 0.223" (5.66mm)

Shield Type : Foil, Braid

Jacket Color : Gray

Contact Now

Aviation Parts 302204S Multiple Conductor Cables Wire Gauge 22 AWG

Descriptions of Aviation Parts:

UNITRONIC® 300/300 S is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure-extruded for improved flexibility and easier installation. UNITRONIC® 300 S has a foil tape and tinned copper braid shield for maximum RFI & EMI protection.

Features of Aviation Parts:

Unshielded construction of Aviation Parts:

Conductors: finely stranded tinned copper
Insulation: blended PVC
Jacket: specially formulated PVC; gray

Shielded construction of Aviation Parts:

Conductors: finely stranded tinned copper
Insulation: blended PVC
Shielding: tri-laminate foil shield and tinned copper braid
(75% coverage); drain wire
Jacket: specially formulated PVC; gray

Application advantage of Aviation Parts:

Extended temperature rating of -40°C to +105°C
Flexible design for ease of routing
Suitable for use in cable tray
Oil- and UV-resistant jacket (Oil Res I)
Sequential foot marking for ease of installation

Specifications of Aviation Parts:

TYPE	DESCRIPTION
Category	Cables, Wires Multiple Conductor Cables
Mfr	Belden Inc.
Series	-
Package	Box
Product Status	Active
Cable Type	Multi-Conductor
Number of Conductors	4
Wire Gauge	22 AWG
Conductor Strand	7/30
Conductor Material	Copper, Bare
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Diameter	0.145" (3.68mm)
Shield Type	Foil
Length	500.0' (152.4m)
Jacket Color	Gray
Ratings	UL Style CMR
Features	Drain Wire, Rip Cord
Operating Temperature	-20°C ~ 75°C
Usage	Alarm, Security, Sound
Jacket (Insulation) Thickness	0.0170" (0.432mm)
Conductor Insulation	Polypropylene (PP)
Shield Material	Aluminum
Shield Coverage	100%
Base Product Number	5502FE

Aviation Parts 302204S Multiple Conductor Cables Wire Gauge 22 AWG

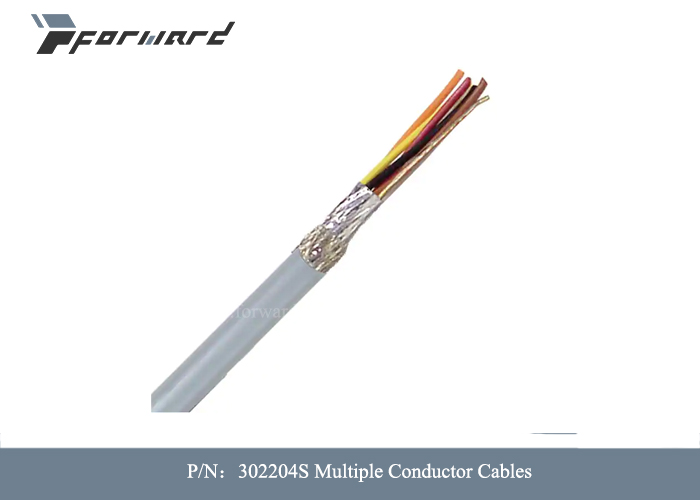

Aviation Parts 302204S Multiple Conductor Cables Wire Gauge 22 AWG Images
